GSW150 (PEB7084)

1G Switch, 7 port, 5 PHYs, GMII & SGMII

Overview

Information 7-port 1G Ethernet Switch
Package MRQFN-134
X x Y Package Dimension (mm) 9 x 9
Interfaces RGMII, GMII
Min Temp (°C) 0
Max Temp (°C) 70
Supply Voltage (V) 3.3
Ethernet Bandwidth (Mbps) 10, 100, 1000
Interface Ports 2
Ethernet Ports 5
Show more

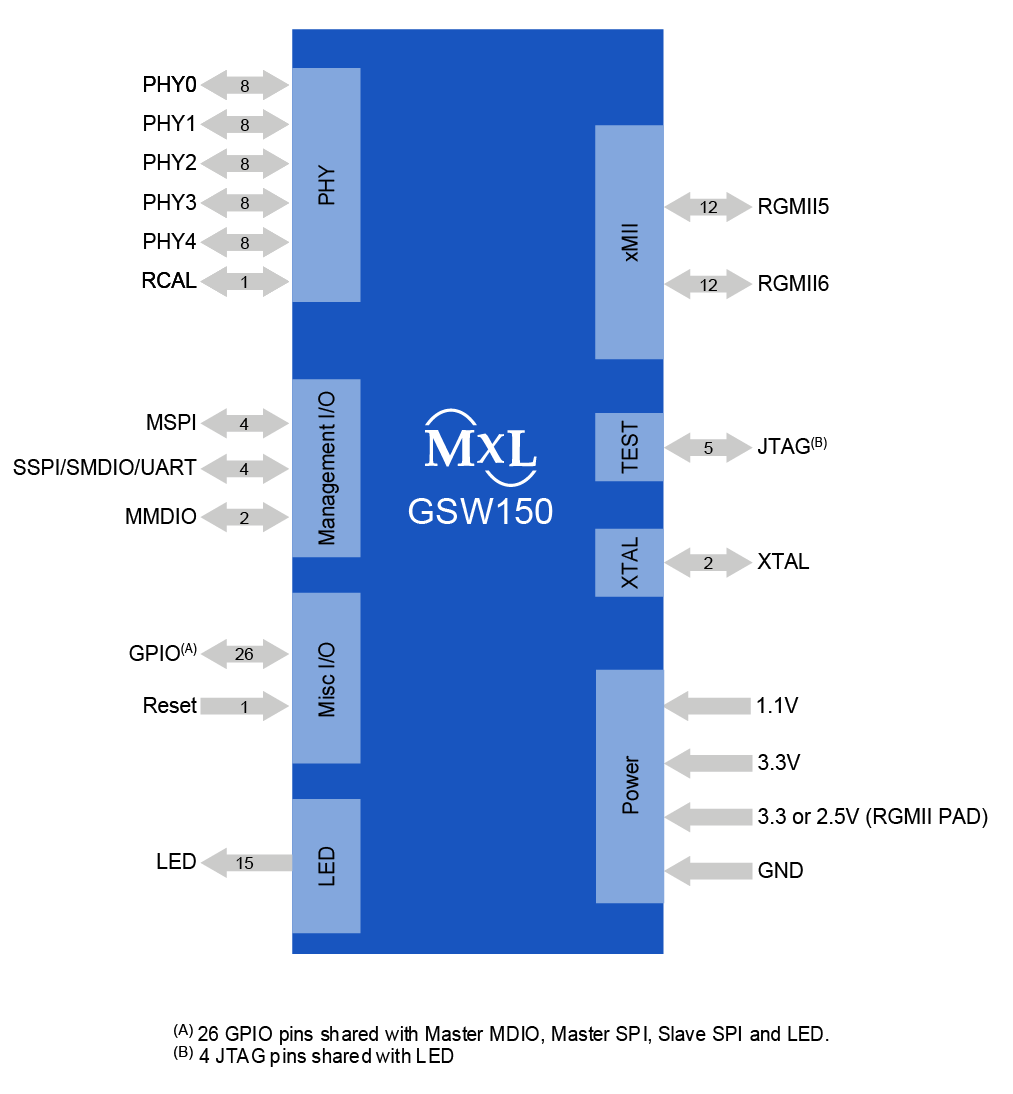

The GSW150 is a highly integrated, non-blocking seven-port Gigabit Ethernet QoS Switch with five Ethernet PHY and one management port. The GSW150 complies with 10BASE-TE, 100BASE-TX and 1000BASE-T standards. Support of Energy-Efficient Ethernet 802.3az reduces power consumption further in idle state. Smart LED brightness control logic is integrated for additional power saving. LED brightness can be adjusted either by an external push button or varies dynamically depending on the intensity of the light with an external light sensor.

The GSW150 devices are configurable via pin-strapping, by means of the MDIO interface, UART interface, SPI interface or optionally by connecting an external EEPROM. Integrated QoS technology prioritizes switch traffic for different classes of applications e.g. VoIP, video, audio and data based on port ID, 802.1p, IP DSCP/ToS and multiple fields of the packet.

IEEE 1588v2 support enables highly accurate precision timing protocol applications. The 128 KB embedded packet storage SRAM is integrated with 9K jumbo frame support. The GSW150 features 4K entry VLAN table for 802.1Q VLAN operation and double VLAN tagging (Q-in-Q) translation.

  • Five integrated PHY
    • 10BASE-TE, 100BASE-TX and 1000BASE-T
    • 802.3az Energy Efficient Ethernet
    • Low EMI line driver with integrated line termination
  • Two RGMII interface with delay compensation
  • QoS support with up to 16 traffic classes based on port, 802.1P, IP DSCP/ToS and multiple fields
  • 4K 802.1Q VLAN and VLAN Q-in-Q insertion, removal and translation
  • Hardware IGMP V1/2/3 and MLD V1/2 snooping
  • Broadcast storm control and ingress bandwidth control
  • Egress rate shaping and WFQ-Strict priority combined scheduling
  • Switch buffer reservation for congestion management
  • SGMII Uplink Port
  • Cable diagnostics, cable open / short detection and cable length estimation
  • Test loops and analog self-test
  • Up to three LEDs per PHY
  • 25MHz or 40MHz crystal
  • 2 K MAC addresses
  • 64 ACL rules
  • Up to 32 Class of Service queues
  • Up to 16 queues per port
  • 32 single rate shapers
  • 16 single rate three color meters
  • 802.1p and IP DSCP/ToS remarking
  • Authentication support (IEEE802.1X Port Authentication)
  • Spanning Tree/Rapid Spanning Tree and 16 STP instances per port
  • Port mirroring
  • Precise Time Stamping indication according to IEEE 1588v2
  • 3.3 V and 1.1 V power supply


  • Set-top Box
  • Router
  • Gateway
  • Power line Adapter
