1G Ethernet PHY
Order Now


Information 1G Ethernet PHY
Ethernet Bandwidth (Mbps) 10, 100, 1000
Interfaces RGMII, SGMII
1588v2 No
SyncE Yes
Thermal Sensor No
Min Temp (°C) -40
Max Temp (°C) 85
Package QFN-48
X x Y Package Dimension (mm) 6 x 6
Software Type PHY Driver
Software Location myMxL: mxl-8611x.c
Show more

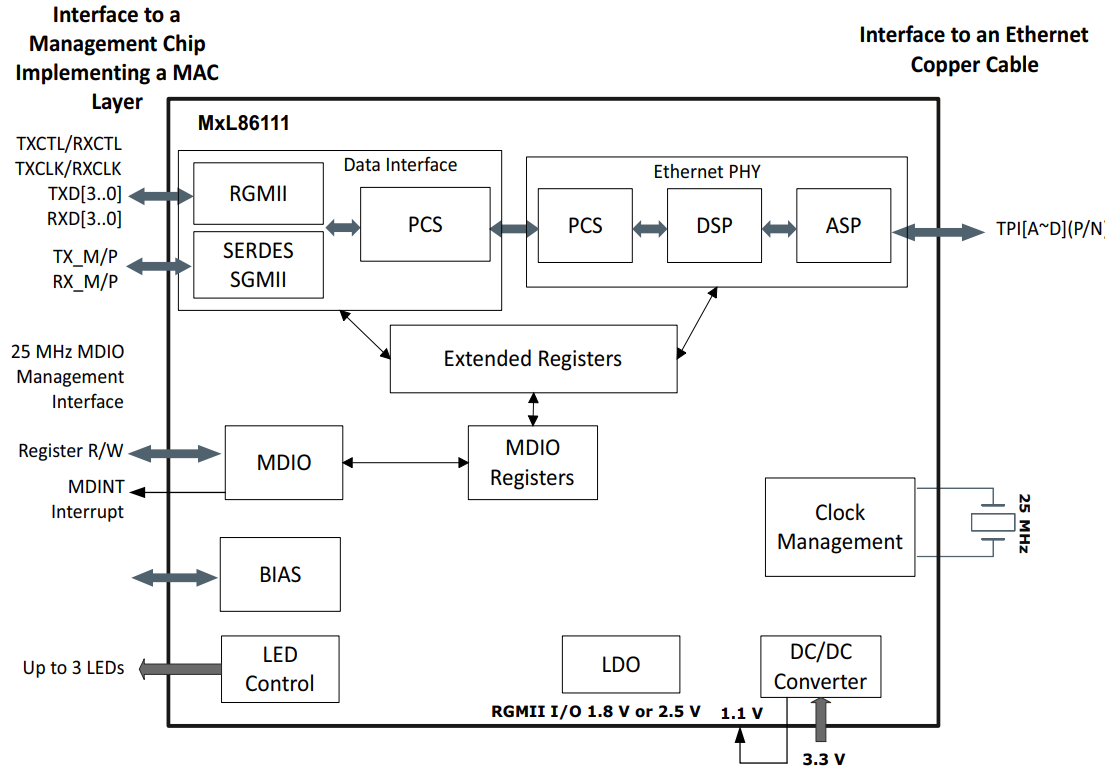

The MxL86111 is a state-of-the-art single port Ethernet Gigabit Copper PHYs with low power consumption, a small footprint and low RBOM. It supports 10BASE-Te, 100BASE-TX and 1000BASE-T on the twisted pair interface. 10BASE-Te and 100BASE-TX support half- and full-duplex and 1000BASE-T full-duplex mode of operation. It is available in both commercial and industrial temperature ranges.

MxL86111 integrates an SGMII / 100BASE-FX / 1000BASE-X interface and supports RGMII or SGMII as the MAC interface and dual media, media converter or RGMII to
SGMII bridge applications.

The MxL86111 has a low power consumption and supports Energy Efficient Ethernet (EEE) for 100BASE-TX and 1000BASE-T. Further power saving can be achieved using the Wake-on-LAN functionality and the no-link detection.

The device is available in a small 6x6 QFN48 package and can be operated from a single 3.3V power supply using the integrated DC/DC converter with few external components.
Advanced applications are supported by the industrial temperature range variant (MxL86111I), SyncE support, integrated SerDes, and the integrated SGMII/BASE-X interface.

  • Supports
    • 10BASE-Te, 100BASE-TX: Full and half-duplex
    • 1000BASE-T: Full-duplex
  • RGMII or SGMII MAC interface
  • Small 6x6 QFN48 Package
  • Low power of <400mW with external DC/DC
  • Energy Efficient Ethernet for 100BASE-TX and 1000BASE-T
  • No-link power saving
  • Auto MDI/MDI-X
  • Auto polarity detection and correction
  • Internal DC/DC enables single 3.3V supply operation
  • Supports 3.3V, 2.5V or 1.8V RGMII
  • 25MHz XTAL or OSC clock input
  • Three network status LEDs
  • Cable diagnostic: Open, short, loop length
  • Auto down-speed for bad cables or two pair loops
  • 10k byte jumbo frame support
  • Wake on LAN over BASE-T or Fiber
  • SGMII / 100BASE-FX / 1000BASE-X interface, media converter, dual media or RGMII to SGMII bridge functionality
  • Supports SyncE (Synchronous Ethernet)

  • Industrial PC & Industrial Equipment
  • Ethernet Switches, Routers, & Gateways
  • Power-over-Ethernet (PoE)
  • Base Stations & Controllers
  • Consumer STB, DVD Player, VOIP Phone, Digital TV & Game Consoles
  • NAS Equipment
  • Printers & Office Equipment
