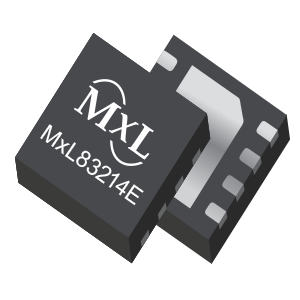

MxL83214

High Performance RS-485 Transceiver with Extended IEC ESD and EFT
Order Now

Overview

Information High Performance RS-485 Transceiver with Extended IEC ESD and EFT
Supported Protocols RS-422, RS-485
Supply Voltage (Nom) (V) 3.3, 5
No. of Tx 1
No. of Rx 1
Duplex Half
Data Rate (MAX) (Mbps) 50
EFT (±kV) 4
HBM ESD (kV) 15
IEC 61000-4-2 Contact (±kV) 12
Rx Fail-Safe Advanced
Multi-Drop Nodes 256
Transient Tolerance (V)
Fault Tolerance (V)
VL Pin
Temperature Range (°C) -40 to 125
Package NSOIC-8, MSOP-8, VSON-8
ICC (Max) (mA) 1.5
Shutdown
Typ Shutdown Current (µA) 0.1
Hot Swap
PROFIBUS (5V) or High Output (3V)
Show more

The MxL83211, MxL83212, and MxL83214 (MxL8321x family) of half duplex RS-485 transceivers support up to
50Mbps communication in harsh industrial environments. The bus pins tolerate high levels of IEC electrical fast
transients (EFT), IEC electrostatic discharge (ESD), and provide an extended common mode range.

Seven product options with slew controlled 250kbps, 500kbps speeds, and high speed 50Mbps varieties in three
different packages provides a broad portfolio that can be used across different applications ranging from high speed
motor drives to wireless infrastructure and building automation. The combination of integrated EFT and ESD
protection in small MSOP and VSON packages makes these products suited for space-constrained applications that
require robust and high performance communication.

High receiver input impedance allows 256 transceivers to share a common data bus while maintaining signal margin
and without excessive loading or use of expensive repeaters. Enhanced failsafe circuitry ensures receivers provide the
expected output when the bus is shorted or left open under both terminated and unterminated conditions. Drivers include
built-in short-circuit protection and a thermal-overload shutdown to protect against excessive power dissipation from
bus contention.

  • Meets or exceeds the requirements of the TIA/EIA-485A standard
  • Differential output exceeds 2.1V for PROFIBUS compatibility with a 5V supply
  • Wide supply range from 3.0 to 5.5V
  • Extended operating temperature range from –40°C to 125°C
  • Extended operational common-mode range of ±15V
  • Low power shutdown mode
  • Enhanced failsafe protection for open, short, idle
  • Glitch-free power-up/down hot plug capability
  • 1/8 unit load (256 bus nodes)
  • NSOIC and small form factor MSOP and VSON packages
  • Robust system protection
    • ± 4kV EFT (IEC 61000-4-4)
    • ±12kV ESD Contact (IEC 61000-4-2)
    • ±15kV ESD HBM
  • 250kbps version: MxL83211
  • 500kbps version: MxL83212
  • 50Mbps version: MxL83214

  • High performance motor drives
  • BBU and RRU Telecom equipment
  • Industrial and single board computers
  • Smart Grid
  • Building security and automation
  • Industrial and process control equipment
  • Industrial transport

Documentation & Design Tools

Type Title Version Date File Size
Data Sheets High Performance RS-485/422 Transceivers with Extended IEC ESD and EFT Protection R06 August 2024 1.3 MB
Application Notes RS-485 Transceivers in Fieldbus Networks R00 October 2024 2.4 MB
Application Notes Electric Fast Transient (EFT) Application Note R00 September 2024 2.5 MB
Application Notes DAN-190, MaxLinear UARTs in RS-485 Applications R01 July 2023 2.4 MB
Application Notes AN-291, RS-485 Advanced Fail-Safe Feature R01 May 2023 3.7 MB
Application Notes RS-232 and RS-485 PCB Layout Application Note R00 December 2022 2.8 MB
Application Notes AN-292, RS-485 Cable Lengths vs Data Signaling Rate R01 July 2022 2.7 MB
User Guides & Manuals MxL8321x High Performance RS-485/422 Transceivers with Extended IEC ESD and EFT Protection EVK User Manual R00 May 2024 2.6 MB
Product Brochures Interface Brochure R01 June 2024 3.6 MB
Register for a myMxL account or Login to myMxL to view all Technical Documentation & Design Tools.

Quality & RoHS

Part Number RoHS | Exempt RoHS Halogen Free REACH TSCA MSL Rating / Peak Reflow Package
MXL83214E-ADA-R N Y Y Y Y L1 / 260ᵒC NSOIC8
MXL83214E-ARA-R N Y Y Y Y L1 / 260ᵒC MSOP8
MXL83214E-AHA-R N Y Y Y Y L1 / 260ᵒC DFN8 3x3

Click on the links above to download the Certificate of Non-Use of Hazardous Substances.

Additional Quality Documentation may be available, please Contact Support.

Parts & Purchasing

Part Number Pkg Code Min Temp Max Temp Status Buy Now Order Samples
MXL83214E-ADA-R NSOIC8 -40 125 Active Order
MXL83214E-AHA-R VSON8 -40 125 Active Order
MXL83214E-ARA-R MSOP8 -40 125 Active Order
MXL83214E-ADA-EVK-1 Board Active

Part Status Legend
Active - the part is released for sale, standard product.
EOL (End of Life) - the part is no longer being manufactured, there may or may not be inventory still in stock.
CF (Contact Factory) - the part is still active but customers should check with the factory for availability. Longer lead-times may apply.
PRE (Pre-introduction) - the part has not been introduced or the part number is an early version available for sample only.
OBS (Obsolete) - the part is no longer being manufactured and may not be ordered.
NRND (Not Recommended for New Designs) - the part is not recommended for new designs.

Packaging

Pkg Code Details Quantities Dimensions
NSOIC8
  • JEDEC Reference: MS-012
  • MSL Pb-Free: L1 @ 260ºC
  • MSL SnPb Eutectic: n/a
  • ThetaJA: 128.4ºC/W (std); 96.8ºC/W (fused)
  • Bulk Pack Style: Tube
  • Quantity per Bulk Pack: 98
  • Quantity per Reel: 2500
  • Quantity per Tube: 98
  • Quantity per Tray: n/a
  • Reel Size (Dia. x Width x Pitch): 330 x 12 x 8
  • Tape & Reel Unit Orientation: Quadrant 1
  • Dimensions: mm
  • Length: 4.90
  • Width: 3.90
  • Thickness: 1.75
  • Lead Pitch: 1.27
MSOP8
  • JEDEC Reference: MO-187
  • MSL Pb-Free: L1 @ 260°C
  • MSL SnPb Eutectic:
  • ThetaJA: 163
  • Bulk Pack Style: Tube
  • Quantity per Bulk Pack: 50
  • Quantity per Reel: 2500
  • Quantity per Tube: 50
  • Quantity per Tray: n/a
  • Reel Size (Dia. x Width x Pitch): 330x12x8
  • Tape & Reel Unit Orientation: Quadrant 1
  • Dimensions: mm
  • Length: 3
  • Width: 3
  • Thickness: 0.85
  • Lead Pitch: 0.65
VSON8
  • JEDEC Reference:
  • MSL Pb-Free: L1 @ 260
  • MSL SnPb Eutectic:
  • ThetaJA:
  • Bulk Pack Style:
  • Quantity per Bulk Pack:
  • Quantity per Reel: 2500
  • Quantity per Tube:
  • Quantity per Tray:
  • Reel Size (Dia. x Width x Pitch): 330 x 12 x 8
  • Tape & Reel Unit Orientation: Quadrant 1
  • Dimensions: mm
  • Length: 3
  • Width: 3
  • Thickness: 0.75
  • Lead Pitch: 0.5
