MxL7204

Dual 4A Power Module
Data Sheets OBS (Obsolete)

Overview

Information
# of Outputs 2
IOUT/Ch (A) 4
VIN MIN (V) 4.5
VIN MAX (V) 20
IQ (µA)
VOUT MIN (V) 0.6
VOUT MAX (V) 5.0
Frequency (kHz) 250-780
Efficiency (%) 93
X-Y Dimension (mm) 15x15
Z Dimension (mm) 2.82
Package LGA
Features UVLO, OTP, Soft Start/Tracking, Frequency Synchronization, Short Circuit Protection, PGOOD, Over Current Protection, Output Overvoltage Protection, PFM, Adjustable Frequency
Junction Temp Range (°C) -40 to 125
Show more

The MxL7204 power module is a complete dual 4A or single 8A output switch mode DC/DC power supply with an input voltage of 4.5V to 20V. It offers higher efficiency and improved thermal performance than the competition while matching pinout and functionality.

Power modules integrate the switching controller, power FETs, inductors and all supporting components.The MxL7204 supports two outputs each with an output voltage range of 0.6V to 5.0V, set by a single external resistor. Its high efficiency design delivers up to 4A continuous current (5A peak) for each output. Only a few input and output capacitors are needed.

The device supports frequency synchronization, multiphase operation, and output voltage tracking for supply rail sequencing. High Switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage, overcurrent and over temperature protection. The power module is offered in a space saving and thermally enhanced 15mm × 15mm × 2.82mm LGA package.


  • Dual 4A output (5A peak)
    • Offers power system ease of design
    • 4.5V to 20V wide single input voltage
    • 0.6V to 5.0V adjustable output voltage
  • Current mode control
    • Fast transient response
    • Adjustable switching frequency (250kHz to 780kHz)
    • Internally compensated
  • Overcurrent protection
  • Output overvoltage protection
  • Frequency synchronization (250kHz to 780kHz)
  • Programmable soft-start
  • Thermally enhanced 15mm x 15mm x 2.82mm LGA package

  • Industrial, Medical and Audio-Visual Equipment
  • Point of load conversion
  • Carrier class router
  • Telecommunications and infrastructure equipment
  • FPGA, DSP, processor supplies
  • Distributed power architecture

Documentation & Design Tools

Type Title Version Date File Size
Data Sheets MxL7204 Dual 4A Power Module 1B September 2019 2.2 MB
Application Notes LGA / BGA Module Assembly Application Note Rev D May 2019 1023.6 KB
User Guides & Manuals MxL7204 Evaluation Board Manual 1B September 2018 2.8 MB
Product Flyers Current Mode, Dual Channel Power Modules Flyer R00 November 2020 2.7 MB
Product Brochures Power Management Brochure May 2024 7.1 MB
Register for a myMxL account or Login to myMxL to view all Technical Documentation & Design Tools.

Quality & RoHS

Part Number RoHS | Exempt RoHS Halogen Free REACH TSCA MSL Rating / Peak Reflow Package
MxL7204-AYA-T TBD TBD Y Y Y L3 / 245ᵒC LGA144 15x15

Click on the links above to download the Certificate of Non-Use of Hazardous Substances.

Additional Quality Documentation may be available, please Contact Support.

Parts & Purchasing

Part Number Pkg Code Min Temp Max Temp Status Suggested Replacement PDN
MXL7204-AYA-T LGA144 15x15 -40 125 OBS 2 x XR79103
MXL7204EVB Board OBS
Show obsolete parts
Part Status Legend
Active - the part is released for sale, standard product.
EOL (End of Life) - the part is no longer being manufactured, there may or may not be inventory still in stock.
CF (Contact Factory) - the part is still active but customers should check with the factory for availability. Longer lead-times may apply.
PRE (Pre-introduction) - the part has not been introduced or the part number is an early version available for sample only.
OBS (Obsolete) - the part is no longer being manufactured and may not be ordered.
NRND (Not Recommended for New Designs) - the part is not recommended for new designs.

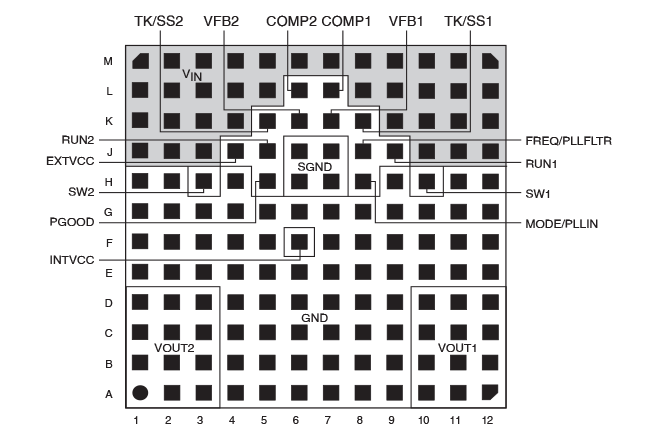

Packaging

Pkg Code Details Quantities Dimensions
LGA144 15x15
  • JEDEC Reference:
  • MSL Pb-Free: L3 @ 245ºC
  • MSL SnPb Eutectic:
  • ThetaJA: 14.4
  • Bulk Pack Style: Tray
  • Quantity per Bulk Pack: 119
  • Quantity per Reel: n/a
  • Quantity per Tube: n/a
  • Quantity per Tray: 119
  • Reel Size (Dia. x Width x Pitch): n/a
  • Tape & Reel Unit Orientation: n/a
  • Dimensions: mm
  • Length: 15
  • Width: 15
  • Thickness: 2.83
  • Lead Pitch: 1.27
