MaxLinear PAM4 DSPs Accelerate Data Center Connectivity

Overview

MaxLinear PAM4 DSPs enable next generation optical modules for data center and hyperscale cloud networks

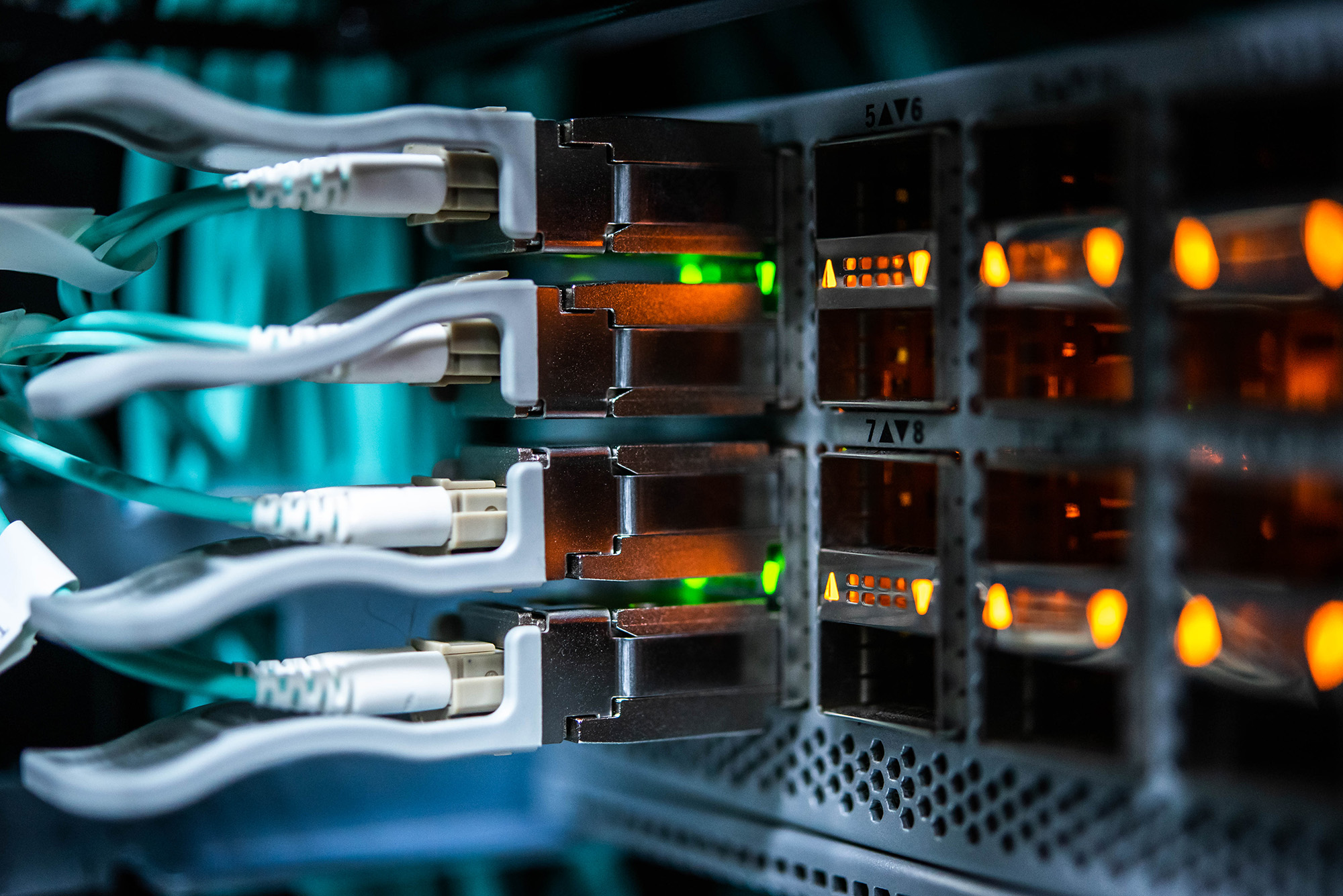

Data traffic continues to grow exponentially in hyperscale cloud networks; requiring ever increasing server access and switch-to-switch interconnect speeds. Low-power, high-density optical modules that support high lane rates are needed to enable higher bandwidth.

Solution

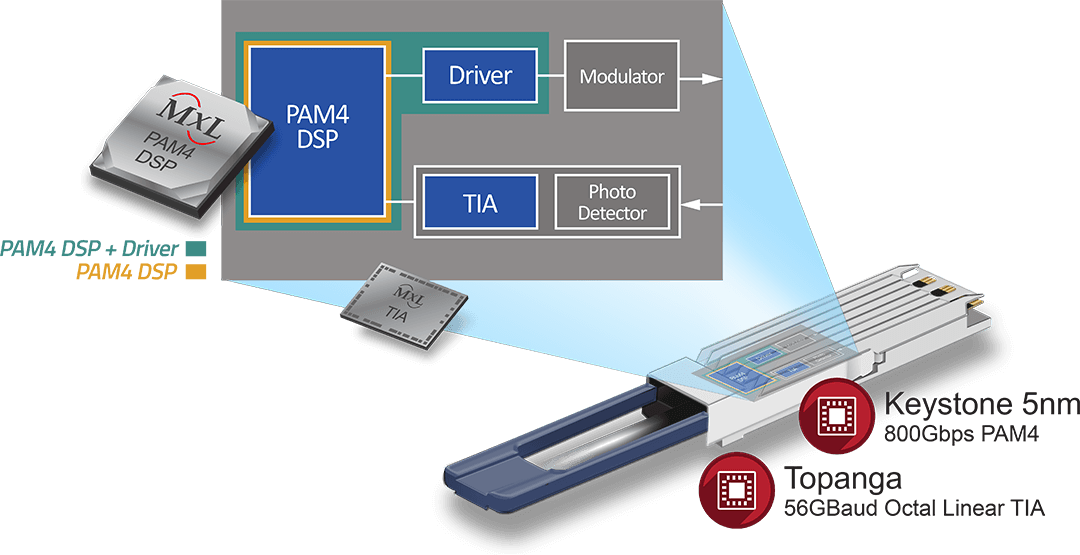

Highly Integrated DSPs & TIAs Enable Next Generation Optical Modules

MaxLinear provides a full range of PAM4 DSPs and TIAs for applications ranging from 100G to 800G, supporting 56G/lane and 112G/lane options on both the host and line side interfaces for data center connectivity.

Products

New Keystone DSPs enable sub-8W 400G-DR4 and sub-15W 800G-DR8 Optical Modules

  • 5nm technology
  • 400G/800G PAM4 DSPs
  • Support 112G/lane electrical and optical I/O 12mm x 13mm package suitable for QSFP-DD800 and OSFP optical modules
  • Integrated driver with single-ended and differential options for both EML and SiPH optical interfaces
Snowmass DSP
100G PAM4
  • Two low power options
  • Electrical interface supports 25Gbps NRZ or 50Gbps PAM4
  • Optical interface supports 100Gbps PAM4 signaling
  • 7mm x 8.5mm package
  • DR/FR/LR
  • QSFP28 optical modules
  • SFP-DD optical modules
  • DSFP optical modules
Keystone DSP
400G/800G PAM4
  • Four low power options
  • Electrical interface supports 56Gbps PAM4
  • Optical interface supports 112Gbps PAM4 signaling
  • 12mm x 13mm package
  • PSM8, DR8, 2xFR, 2xLR (MxL9368x)
  • DR4/FR4/LR4
  • QSFP-DD800 (MxL9368x)
  • QSFP-DD optical modules
  • OSFP optical modules

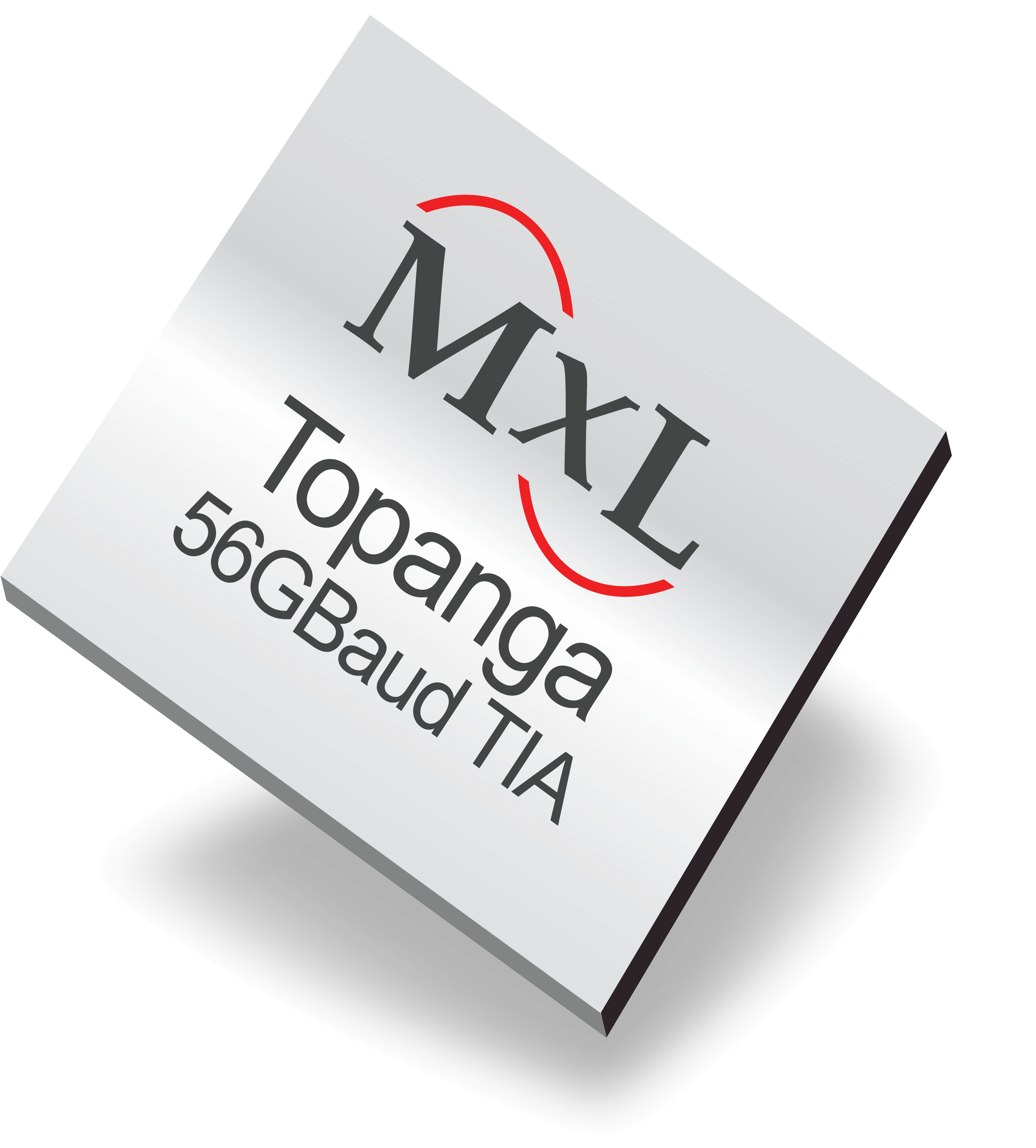

Topanga
56GBaud Linear TIAs
  • Three low power options
  • Supports 56GBaud PAM4 symbol rates
  • Multi-channel 100G TIAs offer best-in-class crosstalk performance
  • Available in bare die
  • QSFP-DD800 optical module
  • OSFP optical module
  • QSFP112 optical module
  • SFP optical module
  • CPO
  • 5G wireless fronthaul
