GSW1xx
Gigabit Ethernet Switches

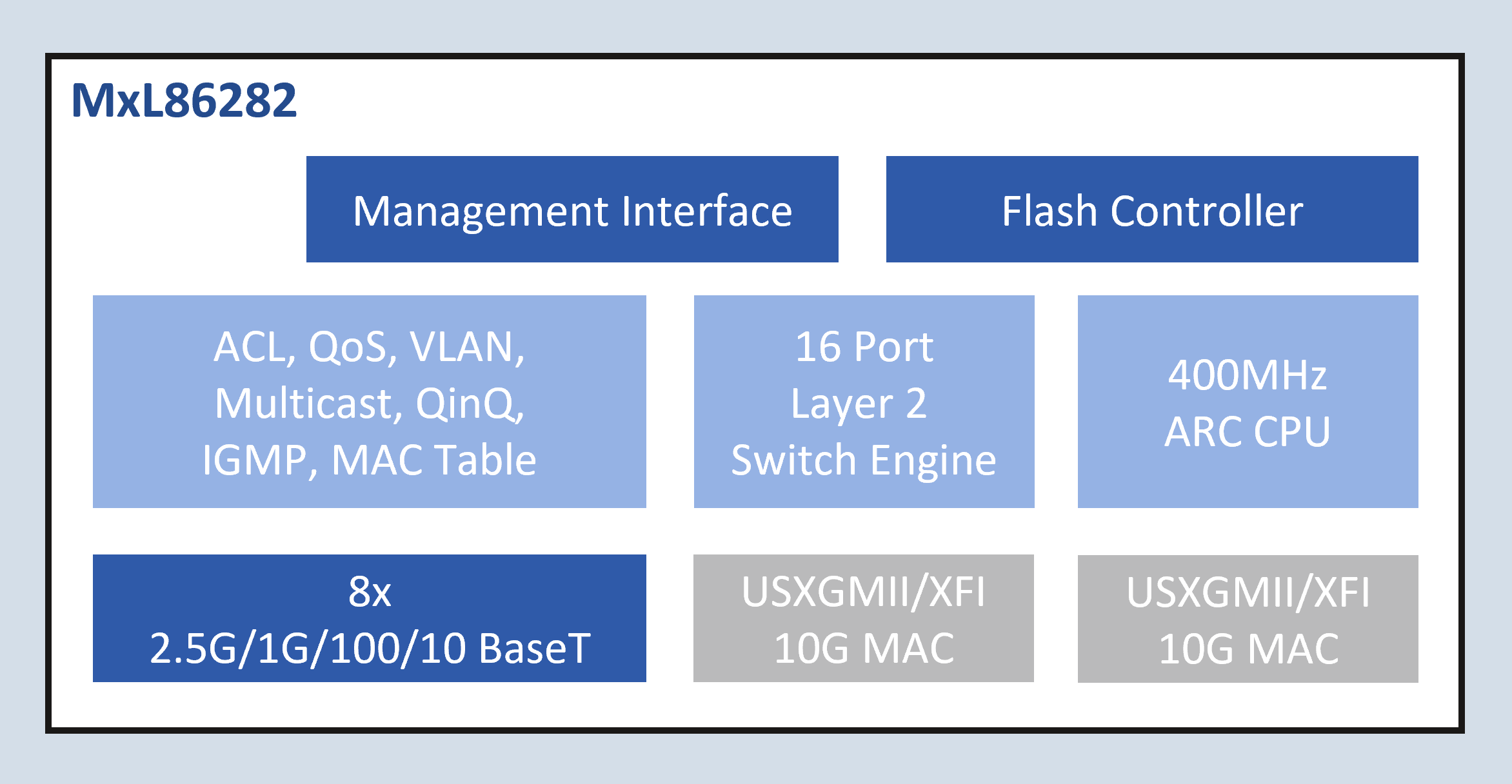

Ethernet Switch with 8 Integrated 2.5G PHYs
- Eight 2.5G Ethernet PHYs
- Two 10G SerDES Interfaces
- 80Gbps Unblocked Switching
- Low Power Consumption
- Feature-rich Web-smart Switch (VLAN, QoS, Loop Detection, ACL)
Unmanaged Switch
No configuration option
Web-smart Switch
Rich configuration options over browser: IGMP, MLD, Qos, VLAN, ...
Host-attached Switch
Configuration and control by external processor over MDIO
The demand for more robust Ethernet products is growing as 2.5G speeds expand into enterprise, retail, and industrial single and multiport applications, and more PCs offer 2.5G Ethernet ports.
The new MxL8628x and MxL8625x switches are optimized for 2.5G Ethernet, providing customers with a rich set of features while being substantially lower power and cost optimized relative to 10G and unoptimized 2.5G devices.
- Low power consumption through high integration
- Smart LED brightness control integrated for power saving
- Small 8mm x 8mm package footprint
- One 1G/2.5G SGMII+ and one management port
- IEEE 1588 Version 2 support
- Three commercial temp options:
- Two industrial temp options
- Supports RMII, RGMII, SGMII, SGMII+ interfaces
- Two or four integrated PHYs
- 10BASE-TE, 100BASE-TX, 1000BASE-T
- 802.3az Energy-Efficient Ethernet
- Low EMI line driver with integrated line termination
- Single RMII interface with delay compensation
- Features include: VLAN, QoS, loop detection, ACL, broadcast storm and ingress bandwidth control, egress rate shaping, hardware snooping
- Low power consumption through high integration
- Power saving modes for short cable, through Energy Efficient Ethernet (EEE) and no-link detection
- Integrated processor enables web-smart switch applications
- Six commercial temp options:
- MxL86280C: 8-port
- MxL86282C: 10-port
- MxL86282S: 10-port, web-smart
- MxL86250C: 5-port
- MxL86252C: 7-port
- MxL86252S: 7-port, web-smart
- Two industrial temp options:
- MxL86282I: 10-port, web-smart
- MxL86252I: 7-port, web-smart
- Supports XFI and USXGMII interfaces
- Wire speed switching between all ports
- Features include: VLAN, QoS, loop detection, ACL
- Eight integrated 2.5GBASE-T PHYs
- 2.5GBASE-T, 1000BASE-T, 100BASE-TX and 10BASE-Te link rates
- 12mm x 12mm package
Learn More - MxL86252x

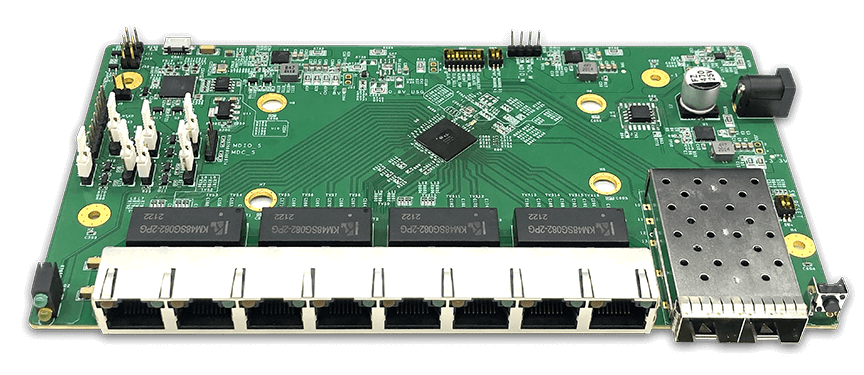

Accelerate Time-to-Market with the MxL86282 Evaluation Kit
.png)
MXL86282C-EVK-1
